VIBRATING SCREEN EXPORTERS

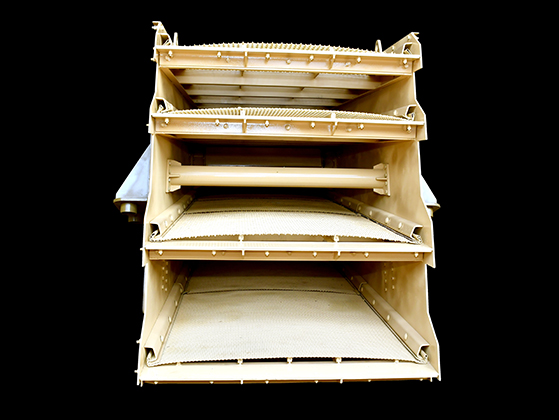

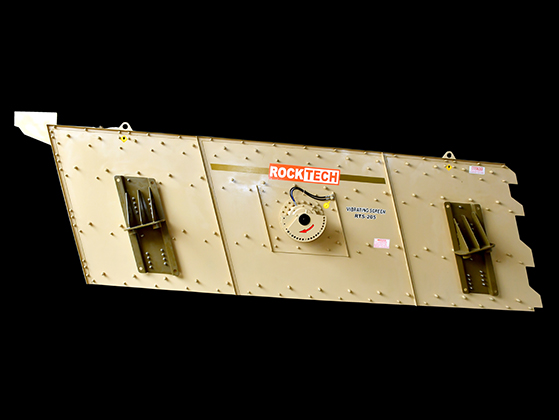

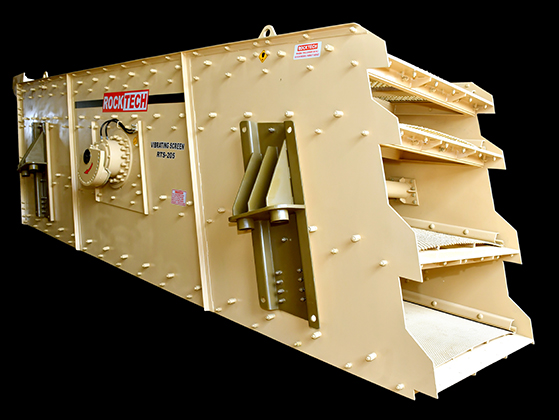

Vibrating Screen (RTS-205-3Deck)

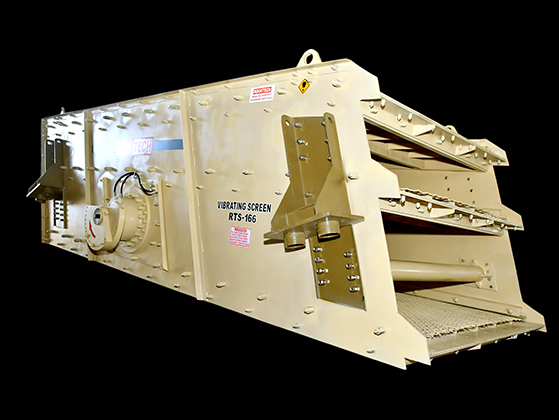

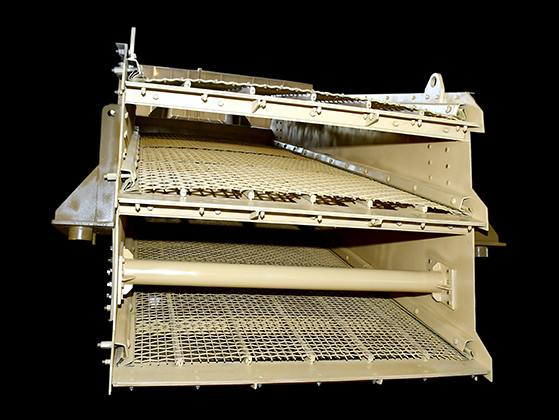

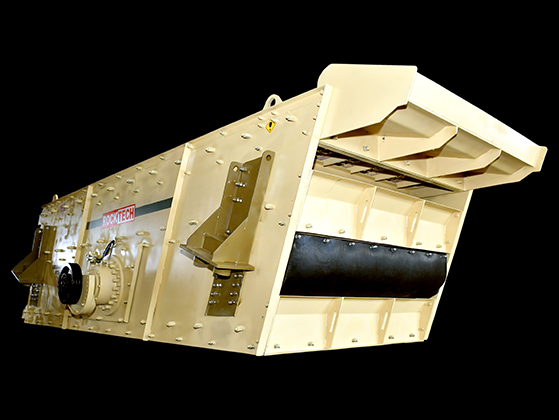

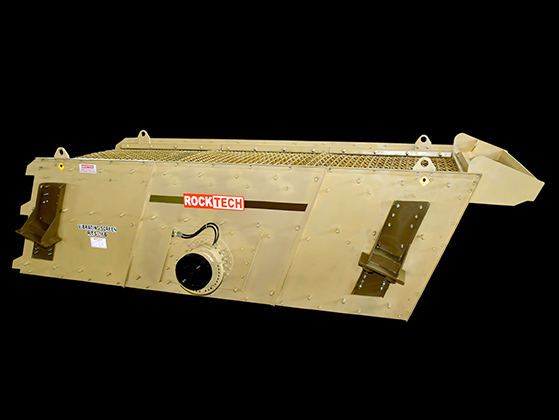

Vibrating SCreen (RTS-166-3Deck)

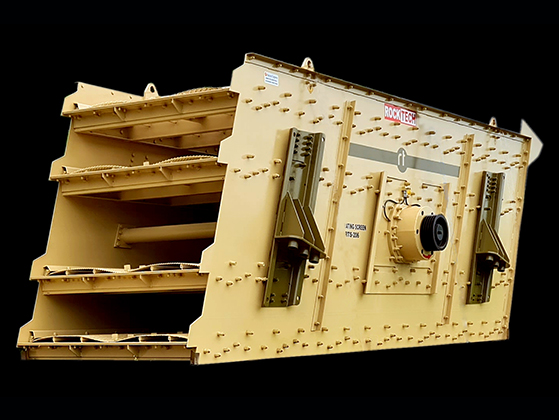

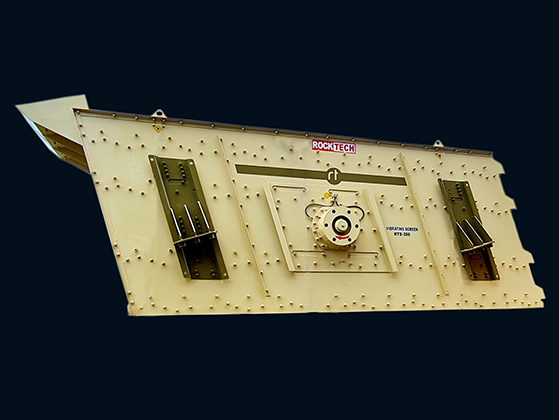

Vibrating SCreen (RTS-206-4Deck)
RT VIBRATING SCREEN EXPORTERS
We offer a wide range of vibrating screens for our customers. The RT vibrating screens are capable to serve in a variety of applications according to our customer requirements and application areas. The RT screens are all inclined screens that have been showing effective stratification than other screens in different application areas. The RT vibrating screens have a simple, rugged and compact design. This type of design makes The RT vibrating screen suitable for any conditions. The RT vibrating screens are designed inclined due to proven effectiveness of its structure. The RT screens are available in different decks mainly 2, 3 and 4 decks. Application has shown that up to 4 decks yield good quality products. Vibrating screen exporters, manufacturers in Mumbai, India to all over the world vibrating screens industry in low price with reliable and durable features.
TECHNICAL SPECIFICATION
| Model | Size | Deck | Mesh Size | Feed Size | Capacity | Power | Speed |
| (feet) | (mm) | (mm) | (TPH) | (KW) | (RPM) | ||
| RTS-84 | 8'x 4' | 2/3 | 3-50 | <150 | 10-50 | 5.5 | 800-1000 |
| RTS-104 | 10'x 4' | 2/3 | 3-50 | <150 | 15-75 | 7.5 | 800-1000 |
| RTS-124 | 12'x 4' | 2/3 | 5-50 | <200 | 20-90 | 7.5 | 800-1000 |
| RTS-125 | 12'x 5' | 2/3 | 5-60 | <200 | 25-100 | 7.5 | 800-1000 |
| RTS-145 | 14'x 5' | 2/3 | 5-80 | <300 | 50-150 | 11 | 800-1000 |
| RTS-165 | 16'x 5' | 2/3/4 | 5-80 | <400 | 50-200 | 11 | 800-1000 |
| RTS-185 | 18'x 5' | 2/3/4 | 5-100 | <400 | 100-250 | 15 | 800-1000 |
| RTS-205 | 20'x 5' | 2/3/4 | 5-100 | <400 | 100-300 | 18.5 | 700-900 |
| RTS-206 | 20'x 6' | 2/3 | 5-100 | <400 | 100-300 | 22 | 700-900 |
