GRIZZLY FEEDER

GRIZZLY FEEDER MANUFACTURERS

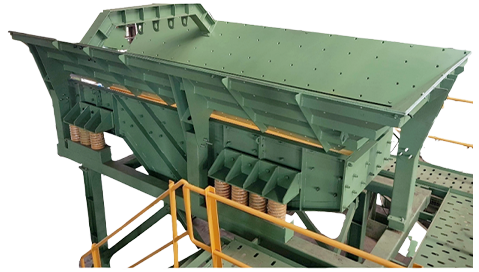

Grizzly Feeder

GRIZZLY FEEDER MANUFACTURERS

Rocktech Engineers also known as a leading Greezly Feeder Manufacturers, RT Grizzly are heavy-duty machines and Large lumps are scaled into the crusher the maximum lump sizes can range up to 6" cubes fines pass through the grizzlies, relieving the crusher and reducing wear.

Vibration is generated by precision-machined, twin unbalanced motor. The vibrating drive assembly is connected directly to the pan to assure positive action under the most adverse loading conditions. Grizzly feeder manufacturers and exporters in Mumbai, India to all over the world grizzly feeders industry in low price with reliable and durable features.

These are fundamentally passing at hand with dish and grizzly feeder mix, back and side renewable liners.

Vibrating utilizing introduced comprises of two contra-pivoting erratic shafts, geared together in oil-bath. Activation is by 4-shaft engine and V-belts drive. Uncommon steel springs are masterminded the establishment on concrete or steel supporting design.

TECHNICAL SPECIFICATION

Model of Grizzly Feeder Pan Size (mm) Max. Feed Size (mm) Capacity Power (KW) Overall Dimension LXBXH (mm)
RTF-1030 1000x3000 500 80-250 7.5 3200x1450x1500
RTF-1040 1000x4000 600 100-250 10 4100x1550x1800
RTF-1240 1250x4300 600 100-250 15 4400x1800x1800
RTF-1240 1250x4300 600 100-250 15 4400x1800x1800
RTF-1550 1500x5000 750 150-350 20 5100x2000x2100

Rocktech Engineers is one of the best Grizzly Feeder Manufacturers, suppliers and Exporters in India.

NOTE: Due to the difference of rocks and the size percentage, distribution and the practical capacity will be different.
