CONE CRUSHER

CONE CRUSHER Exporters

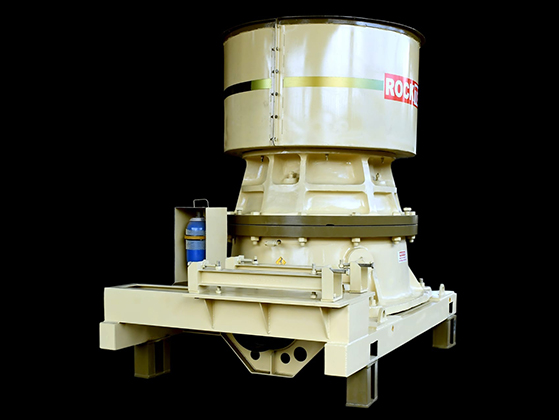

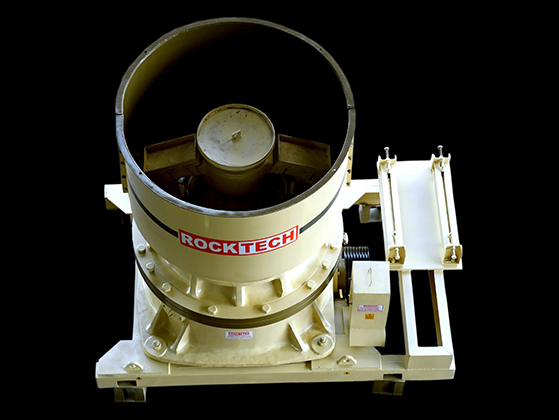

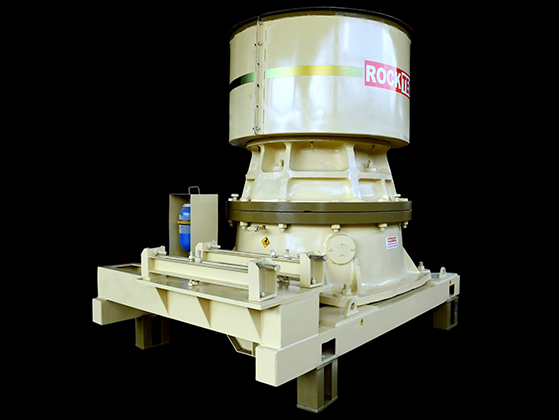

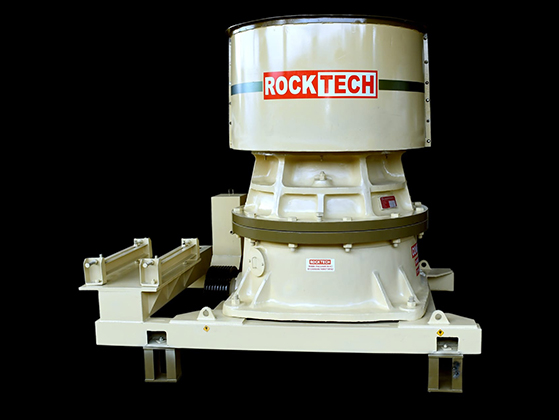

Cone Crusher

Cone crusher series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher exporters in whole India. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. Rocktech cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with one suitable crushing chamber from all optional and automatic control system, The Rocktech cone crushers could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirement for our clients. Cone crusher manufacturers and exporters in Mumbai, India to all over the world cone crushers industry as per the client's need and suggestions.

Technical Specification
Model ECC (mm) Feed Opening size (mm) Power (KW) CSS (mm) & Throughout Capacity (TPH)
C MC 25mm 30mm 35mm 40mm 45mm
RTCC-100 20 250 90 115-125 140-150 155-175 165-195 180-210
25 155-175 165-195 180-210
RTCC-200 25 330 160 165-215 185-235 205-255 225-275
32 225-275 265-315 275-345
RTCC-300 32 380 250 350-390 370-410 390-430
40 440-490 470-520
NOTE: Due to the difference of rocks and the size percentage, distribution and the practical capacity will be different.
