BUCKET DEWATERING CLASSIFIER

BUCKET DEWATERING CLASSIFIER MANUFACTURERS

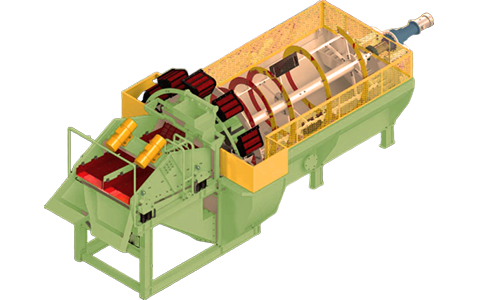

Bucket dewatering classifier

RT BUCKET DEWATERING CLASSIFIER

The ROCKTECH Bucket Classifier series washing classifier is an equipment which gives better quality product than any other washing equipment. Effective and slow washing increases product quality.

The RTBDC series washing classifier have three variants according to their capacities. Even though it is a slow washing process, the product quality from dewatering screen gives best result. The slow running spirals with high capacity rotating buckets give improved productivity.

The RTBDC series washing classifier need less driving power for high productivity with minimum maintenance cost. Washing and dewatering gives best result than any other product screening. The preset period of settling time provide better quality products from The RTBDC series washing classifier.

The RTBDC series washing classifier is highly economical due to less power drives. High capacity gear box is used for speed reduction which makes a compact drive system. The dewatering screen drive is provided by two electric vibro motors that achieves high efficiency. Bucket dewatering classifier manufacturers and exporters in Mumbai, India to all over the world dewatering classifiers industry in low price with reliable and durable features.

TECHNICAL SPECIFICATION

Model Max. Feed Drive Power Rotation Speed Unbalanced Motor Capacity Approx Weight
size (mm) (kW) RPM Power (kW) (TPH) (kg)
RTBDC-80 < 8 5.5 3.29 2x1.5 80 8200
RTBDC-120 < 8 7.5 3.29 2x1.5 120 9500
RTBDC-160 < 8 11 3.32 2x1.5 160 12500
NOTE: Due to the difference of rocks and the size percentage, distribution and the practical capacity will be different.
